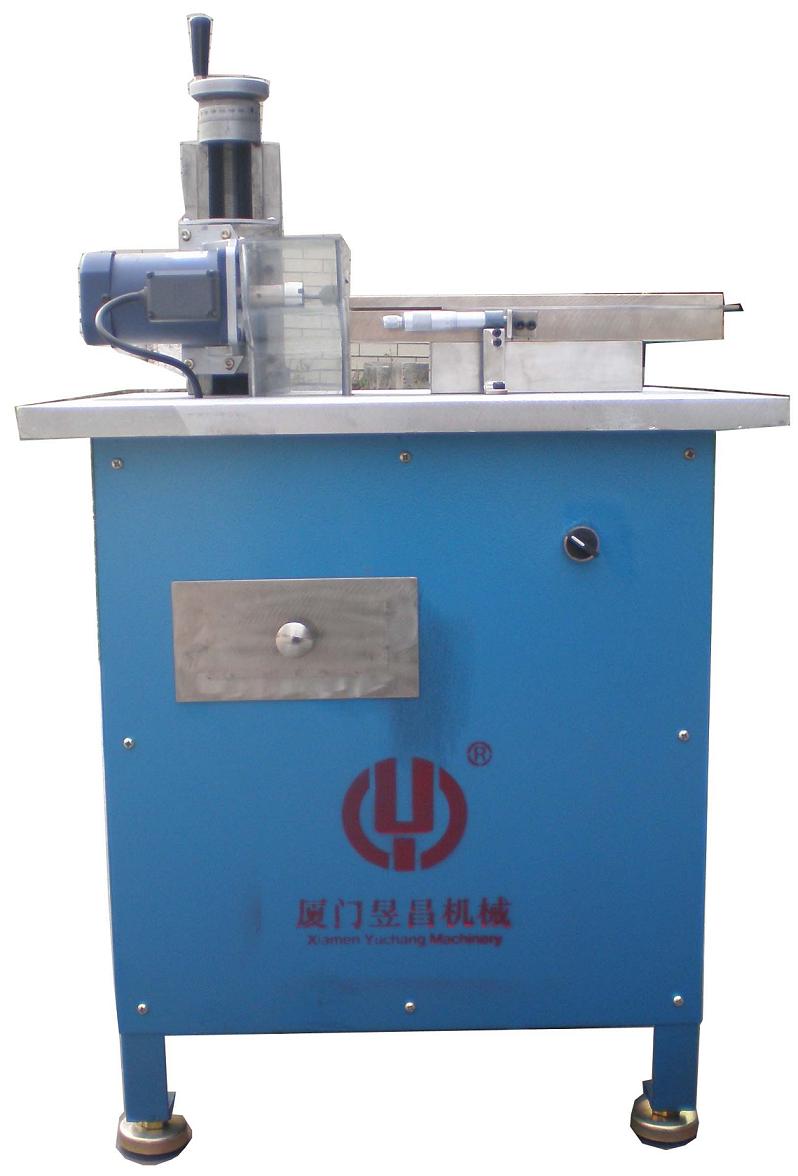

專用端面修整機(Special end trimming machine)
一、 主要性能說明(The main performance specification)
修型專用端面修整機是異型產品加工專用機臺，主要精密部件為進口配件，馬達采用中德技術合作。配置聚晶刀，可修磨端面平整等。
Fix the special end trimming machine is a special machine processing of special products, themain precisionpartsfor importedparts, motoradoptsthe Sino-Germantechnical cooperation. The configuration of polycrystallineknife, grinding flat face.
二、主要技術參數(Main technical parameters)

品號article number ：YC2111
軸可調范圍Axial adjustable range：0-105mm
調節刻度Adjusting scale ：±0.02mm
送料精度Feeding precision：±0.03mm
滑軌行程Rail travel：70mm
成品尺寸加工范圍Processing range of product size：φ3—φ50
電機功率power of motor :　25w
長長度The lengths of： 460mm
